INSULATED PANELS

INDUSTRIES SERVED

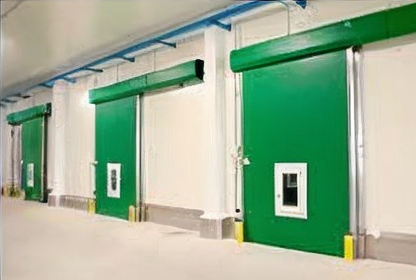

Cold Storage

Isocindu offers a wide range of options in panels that can deliver top performance in positive and
negative cold rooms, temperature-controlled areas and clean rooms. In addition to their excellent
performance, Isocindu panels lead to an excellent hygiene level thanks to easy cleaning and
washable prepainted surfaces, unsuitable for the proliferation of fungi, bacteria and mold.

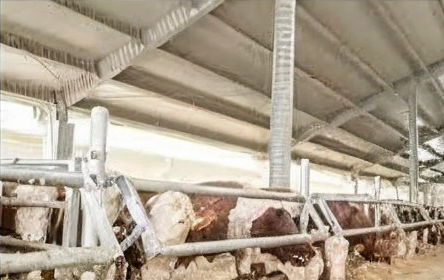

Agriculture / Farming

Grow Rooms

Thanks to their high thermal insulation, resistance to mold, acids and mechanical movements, IsoCindu panels guarantee hygiene and safety for the farming or poultry sector and are environmentally integrated with the rural area in which they are located.

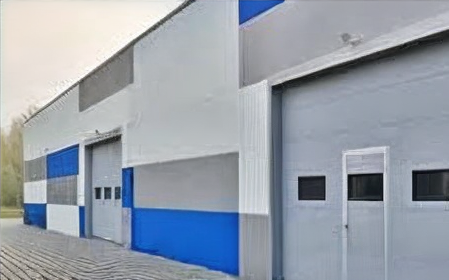

Industrial

IsoCindu panels are lightweight, safe, easy to install and provide the thermal insulation needed for buildings such as warehouses and industrial buildings, the ideal sustainable design for industry.

Commercial / Health Care

Versatility, originality in design, safety, thermal insulation and easy assembly. The panel adapts to the different  requirements of commercial buildings, allowing the maximum value of the commercial concept and brand to be projected.

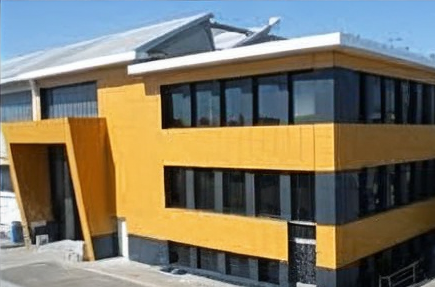

Architectural / Design

New trends in construction can be adapted with Isocindu panel systems. High technological performances are combined with aesthetic quality to offer more advantages in a single solution.

Residential

IsoCindu guarantees functional solutions for residential buildings of all styles, providing thermal insulation properties, safety, aesthetic value, respect for the environment, and the architectural landscape.

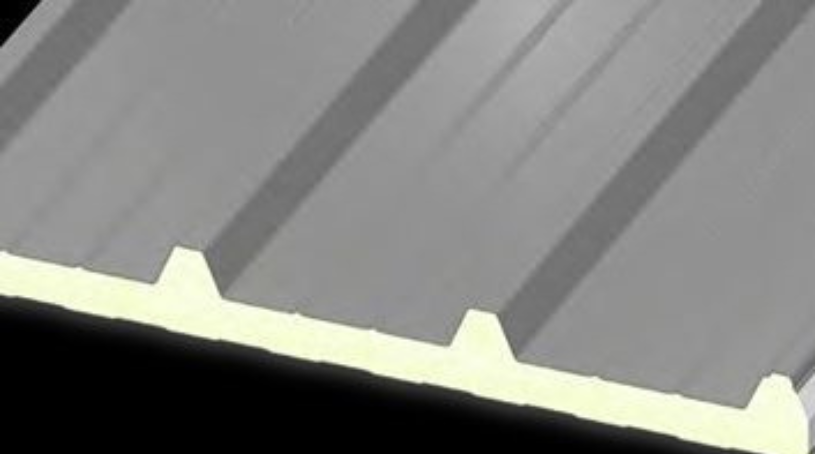

ISOCOP 4

Roof Panel

Features

A double-steel sheet roof panel assembly insulated with
polyisocyanurate rigid foam. This design caters to “low sloped”
pitched roofs. Sheets have (4) trapezoidal rows on each panel to
enhance static and dynamic forces. Panels have an exposed
fastening system that includes saddle clips at each anchoring
point. Systems applicable in design to incorporate within a
multitude of roofing sub-structure assemblies.

Benefits

– Rust resistance
– High mechanical strength
– Hygienic
– Easy wash material
– Mold and humidity resistance
– Gasket barrier to prevent vapor leaks

Specifications

Standard Lenght:  Typical panel lenght is 8’ up to a maximum of 54’ (Subject to transportation limitations)

Width  39 ⅜”

Joint: Interconnecting male/female

Thickness: 1½“ 2” 2½“ 3” 4” 5” 6” 8”

Exterior Face  Prepainted steel

Interior Face:  Shadowline profile

Foam Density:  2.49 LB/FT 3

Exterior Finish:  Polyester coating

Interior Finish:  Polyester coating

Joint Type:  Exposed

For trims and accessories, ask your sales rep or contact Isocindu for more
information and availability.

ISOPARETE

Box / Striated / Flat

Features

A double-steel sheet wall panel, insulated with polyisocianurate
rigid foam. The tongue-and-grove joint completed by concealed
fasteners and saddle clip. External faces are available in striated,
box, and flat profiles. The internal face is standard with the box
profile (contact us for other options)

Options

Isoparete is a sandwich panel characterized by a hidden fixing
joint system, used for industrial and commercial building walls,
and perfect solution for cold storage industries. It can be used in
combination with wall sandwich panels Isoclass and Isoparete.

Benefits

– Suitable for controlled temperatures
– Gasket barrier to prevent vapor leaks
– High mechanical strength
– High puncture resistance
– High thermal resistance
– Up to 8 ”thick
– Possibility of combination with compatible panels

Specifications

Standard Lenght:  Typical panel lenght is 8’ up to a maximum of 54’ (Subject to transportation limitations)

Width  39 ⅜”

Joint: Interconnecting male/female

Thickness: 1½“ 2” 2½“ 3” 4” 5” 6” 8”

Exterior Face  Prepainted steel

Interior Face:  Shadowline profile

Foam Density:  2.49 LB/FT 3

Exterior Finish:  Polyester coating

Interior Finish:  Polyester coating

Joint Type:  Hidden

For trims and accessories, ask your sales rep or contact Isocindu for more
information and availability.

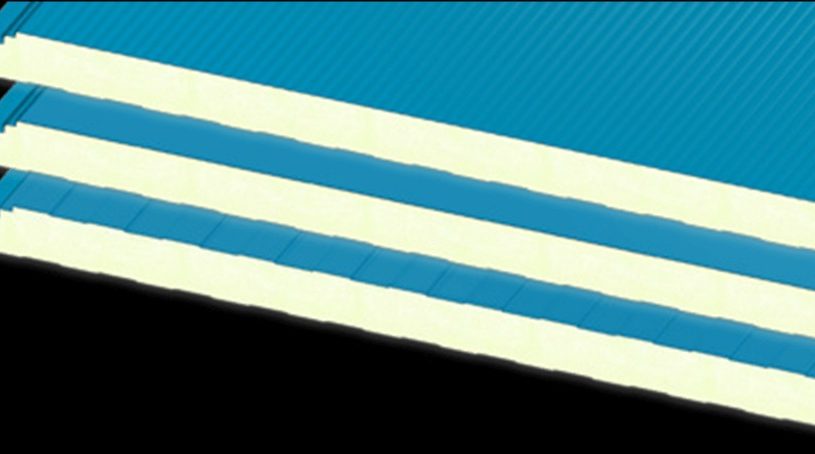

ISOBOX / SUPER ISOBOX

Box / Striated / Flat

Features

A double-steel sheet wall panel, insulated with polyisocianurate
rigid foam. The tongue-and-grove joint is completed by exposed
fasteners and saddle clip. External face available in striated, box
and flat profiles. The internal face is standard with the box profile
(contact us for other options).

Options

Isobox is a sandwich panel for coating used in walls of industrial
buildings, and internal partitions, suitable for cooling chambers.
Available in 45¼” width, perfect size for cold storage.

Benefits

– Suitable for controlled temperatures
– Up to 8 ”thick
– Available in 45¼” widht
– Gasket barrier to prevent vapor leaks
– High mechanical strength
– High puncture resistance
– High thermal resistance

Specifications

Standard Lenght:  Typical panel lenght is 8’ up to a maximum of 54’ (Subject to transportation limitations)

Width  39 ⅜” / 45¼”

Joint: Interconnecting male/female

Thickness: 1½“ 2” 2½“ 3” 4” 5” 6” 8”

Exterior Face  Prepainted steel

Interior Face:  Shadowline profile

Foam Density:  2.49 LB/FT 3

Exterior Finish:  Polyester coating

Interior Finish:  Polyester coating

Joint Type:  Exposed

For trims and accessories, ask your sales rep or contact Isocindu for more
information and availability.
